MX6 iBrid Multi-Gas Portable Gas Detector

MX6 iBrid – an intelligent hybrid of Industrial Scientific’s best monitoring technologies, and the first gas detector with a full-colour LCD display screen.

You will see hazardous levels of oxygen, toxic and combustible gas, and volatile organic compounds (VOCs) like you never imagined possible.

  • Monitors 1-6 gases.
  • 24 gas sensor options, including PID and IR.
  • Full-colour LCD display.
  • iNet® ready and docking station compatible.

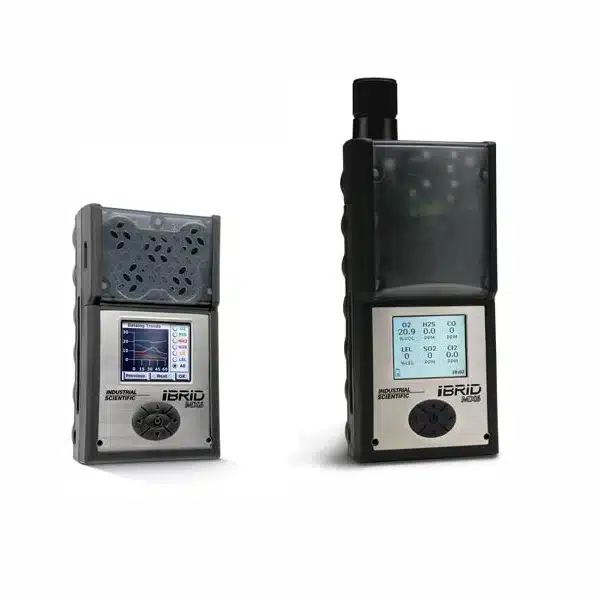

MX6 iBrid multi-gas portable gas detector



Overview of MX6 iBrid features

MX6 iBrid is the first gas detector to feature a full-colour LCD display screen.

The LCD display improves safety by providing clear readings in light conditions ranging from low light to bright light.

The LCD display makes it easy to see what gas hazards lurk in the immediate work environment, whether that be outside, inside or underground.

The eye-catching colour LCD display allows you to step through instrument settings and functions with an intuitive menu and the detector’s 5-way navigation button.

MX6 iBrid even supports the option of on-board graphing for easily interpreted direct readings and recorded data.

The MX6 iBrid is Industrial Scientific’s most rugged instrument ever. It carries a lifetime warranty and is fully compatible with the DSX™ Docking Station and iNet™ Instrument Network.

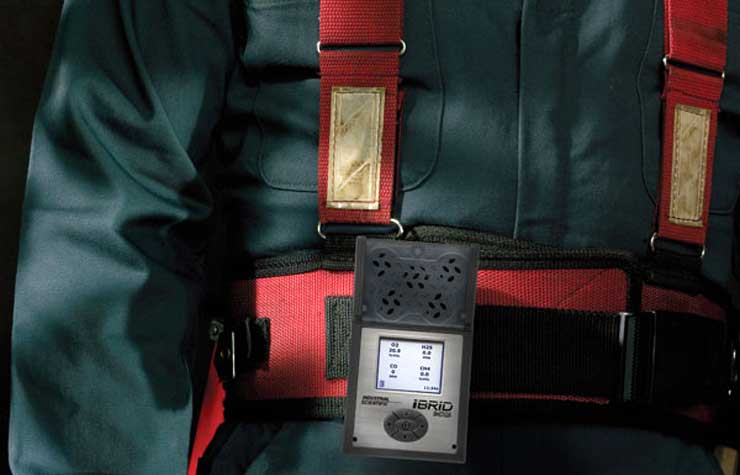

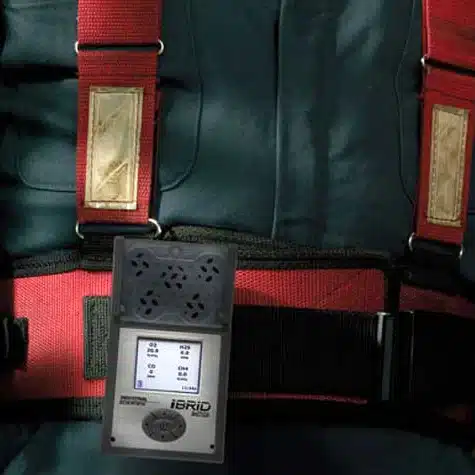

MX6 multi-gas portable gas detector on miner's belt clip



PDF Downloads

pdf-icon MX6 iBrid – Product Manual Download PDF
pdf-icon MX6 iBrid – Quickstart Guide Download PDF
pdf-icon MX6 iBrid – Literature Download PDF
pdf-icon Ventis MX4 and MX6 iBrid for Mining Download PDF
pdf-icon MX6 iBrid – Four Steps of Operation Download PDF
pdf-icon MX6 iBrid – PID Response Factors Download PDF
pdf-icon MX6 Refuge Chamber Manual Download PDF
pdf-icon Getting to Know Your MX6 Download PDF





Ordering Information

Base Instrument Sensor Options Battery Options Version Options
MX6 iBrid logo

The following items are supplied with the MX6 iBrid gas detector:

  • Universal charger
  • Nylon carrying case
  • Belt clip
  • Calibration cup
  • Wrist strap
  • Maintenance tool
  • Manual
  • Quick start guide
  • Calibration tubing
  • Dust filter/water stop (aspirated)
  • Calibration fitting (aspirated)
  • Sample tubing (aspirated)
Combustible Gases:

  • LEL (Pentane)
  • LEL (Methane)
  • CH4 IR (0-100% vol.)
  • CH4 (0-5%)
  • Hydrocarbons IR
    (0-100% LEL)

Volatile Organic Compounds:

  • PID

Toxic Gases:

  • H2S
  • O2
  • NO2
  • CO
  • CO/H2S
  • NH3
  • Cl2
  • ClO2
  • PH3
  • CO High
  • SO2
  • HCl
  • HCN
  • H2
  • PH3 High
  • NO
  • CO/H2 low interference
  • CO2 IR
Li-ion Diffusion
Li-ion
Ext. Range
Pump
Alkaline
Li-ion
MSHA/AUS
Li-ion
Ext. Range
MSHA/AUS
Alkaline
MSHA/AUS
Li-ion
GOST
Li-ion
Ext. Range
GOST
Alkaline
GOST

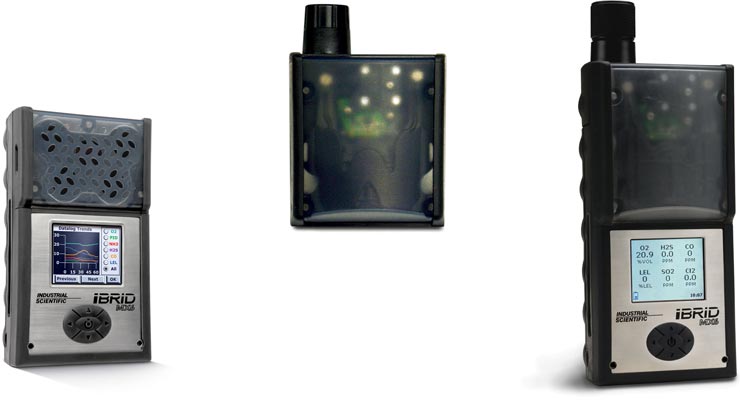

MX6 iBrid gas detectors and pump
L-R: MX6 iBrid gas detector; remote sampling pump; MX6 iBrid gas detector with pump.



Common MX6 iBrid Configurations (UL/CSA)

Part Number Description
MX6-K1230101 LEL, CO, H2S, O2, Li-ion
MX6-K0230101 LEL, H2S, O2, Li-ion
MX6-K1030101 LEL, CO, O2, Li-ion
MX6-K0030101 LEL, O2, Li-ion
MX6-K123R211 LEL, CO, H2S, O2, PID, Ext. Li-ion, Pump
MX6-K1235101 LEL, CO, H2S, O2, SO2, Li-ion
MX6-K0235101 LEL, H2S, O2, SO2, Li-ion
MX6-0000R211 PID, Ext. Li-ion, Pump





Common Industry Configurations (UL/CSA)

Part Number Description
Petroleum Refining:
MX6-KJ53R211 LEL, CO/H2S, O2, SO2, PID, Ext. Li-ion, Pump
Mining (Diesel Applications):
MX6-K103Q211  LEL, CO, O2, CO2, Ext. Li-ion, Pump
Pulp/Paper:
MX6-KJ835101 LEL, CO/H2S, O2, SO2, ClO2, Li-ion
HazMat:
MX6-K673R211 LEL, O2, NH3, Cl2, PID, Ext. Li-ion, Pump
Mining:
MX6-M1030401 CH4 (%), CO, O2, Li-ion (MSHA/AUS)
Mining (Diesel Applications):
MX6-M1D34401 CH4 (%), CO, O2, NO2, NO, Li-ion Ext.



MX6 iBrid™ Sensor Availability

  • Carbon Monoxide (CO)
  • Hydrogen Sulphide (H2S)
  • Oxygen (O2)
  • Nitrogen Dioxide (NO2)
  • Sulphur Dioxide (SO2)
  • Ammonia (NH3)
  • Chlorine (CI2)
  • Chlorine Dioxide (CIO2)
  • Phosphine (PH3)
  • Hydrogen Chloride (HCI)
  • Hydrogen Cyanide (HCN)
  • Hydrogen (H2)
  • Nitric Oxide (NO)
  • Phosphine (PH3 high)
  • Carbon Monoxide (H2 low)
  • Carbon Monoxide (high)
  • Carbon Monoxide / Hydrogen Sulphide (CO/H2S)
  • %LEL (Pentane)
  • %LEL (Methane)
  • Methane (0-5% volume)
  • Methane IR (0-100% volume)
  • Hydrocarbons IR (0-100% LEL)
  • Carbon Dioxide IR (0-5% volume)
  • PID (VOCs)
  • Methane (0-100% LEL)



MX6 iBrid Specifications

INSTRUMENT WARRANTY:

  • Warranted for as long as the instrument is supported by Industrial Scientific Corporation.

CASE MATERIAL:

  • Lexan, ABS and stainless steel with protective rubber overmould.

DIMENSIONS:

  • 135mm x 77mm x 43mm – without pump
  • 167mm x 77mm x 56mm – with pump

WEIGHT:

  • 409g typical without pump
  • 511g typical with pump

DISPLAY/READOUT:

  • Colour Graphic Liquid Crystal Display

POWER SOURCE/RUN TIMES:

  • Rechargeable Lithium-ion (Li-ion) battery pack – 24 hours (without pump)
  • Rechargeable, extended-range Lithium-ion (Li-ion) battery pack – 36 hours (without pump)
  • Replaceable AA alkaline battery pack – 10.5 hours (without pump)

OPERATING TEMPERATURE RANGE:

  • -20ºC to 55ºC

OPERATING HUMIDITY RANGE:

  • 15% to 95% non-condensing (continuous)

MEASURING RANGES:

  • CATALYTIC BEAD SENSOR:
    • Combustible Gas: 0-100% LEL in 1% increments
    • Methane: 0-5% vol in 0.01% increments
  • ELECTROCHEMICAL SENSOR:
    • Ammonia: 0-500 ppm in 1 ppm increments
    • Carbon Monoxide: 0-1,500 ppm in 1 ppm increments
    • Carbon Monoxide (High Range): 0-9,999 ppm in 1 ppm increments
    • Carbon Monoxide/Hydrogen low: 0-1,000 ppm in 1 ppm increments
    • Chlorine: 0-50 ppm in 0.1 ppm increments
    • Chlorine Dioxide: 0-1 ppm in 0.01 ppm increments
    • Carbon Monoxide/Hydrogen Sulphide (COSH): 0-1,500 ppm in 1 ppm increments (CO). 0-500 ppm in 0.1 ppm increments (H2S)
    • Hydrogen: 0-2,000 ppm in 1 ppm increments
    • Hydrogen Chloride: 0-30 ppm in 0.1 ppm increments
    • Hydrogen Cyanide: 0-30 ppm in 0.1 ppm increments
    • Hydrogen Sulphide: 0-500 ppm in 0.1 ppm increments
    • Nitric Oxide: 0-1,000 ppm in 1 ppm increments
    • Nitrogen Dioxide: 0-150 ppm in 0.1 ppm increments
    • Oxygen: 0-30% vol in 0.1% increments
    • Phosphine: 0-5 ppm in 0.01 ppm increments
    • Phosphine (High Range): 0-1,000 ppm in 1 ppm increments
    • Sulphur Dioxide: 0-150 ppm in 0.1 ppm increments
  • INFRARED SENSOR:
    • Hydrocarbons: 0-100% LEL in 1% increments
    • Methane (% vol): 0-100% vol in 1% increments
    • Methane (% LEL): 0-100% LEL in 1% increments
    • Carbon Dioxide: 0-5% vol in 0.01% increments
  • PHOTOIONISATION SENSOR:
    • VOC: 0-2,000 ppm in 0.1 ppm increments

CERTIFICATIONS:

  • UL
    • Class I, Groups A,B,C,D T4; Class II, Groups F,G; AEx ia d IIC T4
  • CSA
    • Class I, Groups A,B,C,D T4; Ex d ia IIC T4
  • MSHA
    • CFR30, Part 22, Intrinsically safe for methane/air mixtures
  • ATEX
    • Ex ia IIC T4 Ga / Ex ia I Ma; IP64
    • Equipment Group and Category: II 1G / I M1 (I M2 w/IR sensor)
  • IECEx
    • Ex ia IIC T4 Ga / Ex ia I (Ex ia d I w/IR sensor)
  • ANZEx
    • Ex ia s Zone 0 I, IP64 Asp., IP64 Dif. Ex ia s Zone 0 IIC T4
  • INMETRO
    • Ex ia IIC T4 Ga
  • GOST-R
    • PBExiadI X / 1ExiadIICT4 X
  • KOSHA
    • Ex d ia IIC T4
  • China Ex
    • Ex ia d I/IIC T4
  • China CPC
    • Metrology Approval

* These specifications are based on performance averages and may vary by instrument

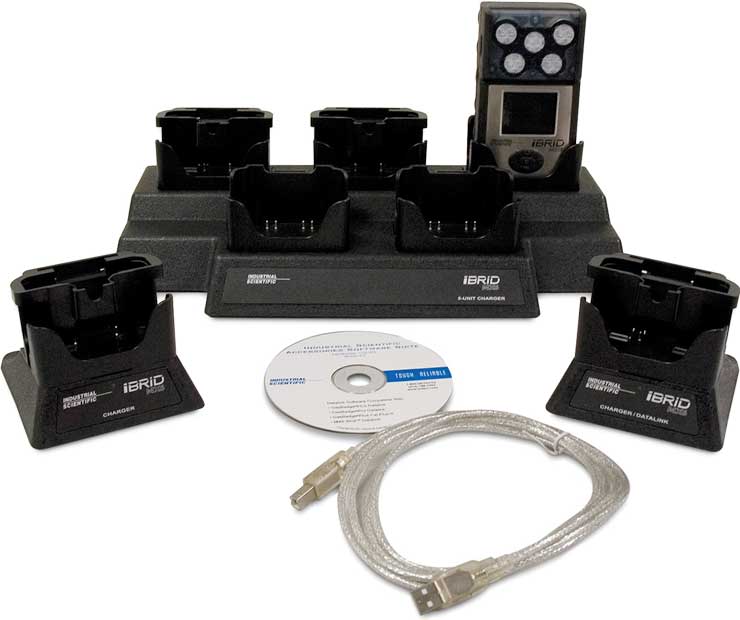

MX6 chargers, 5-unit charger, and charger/datalink unit
MX6 charger, 5-unit charger, and charger/datalink unit
