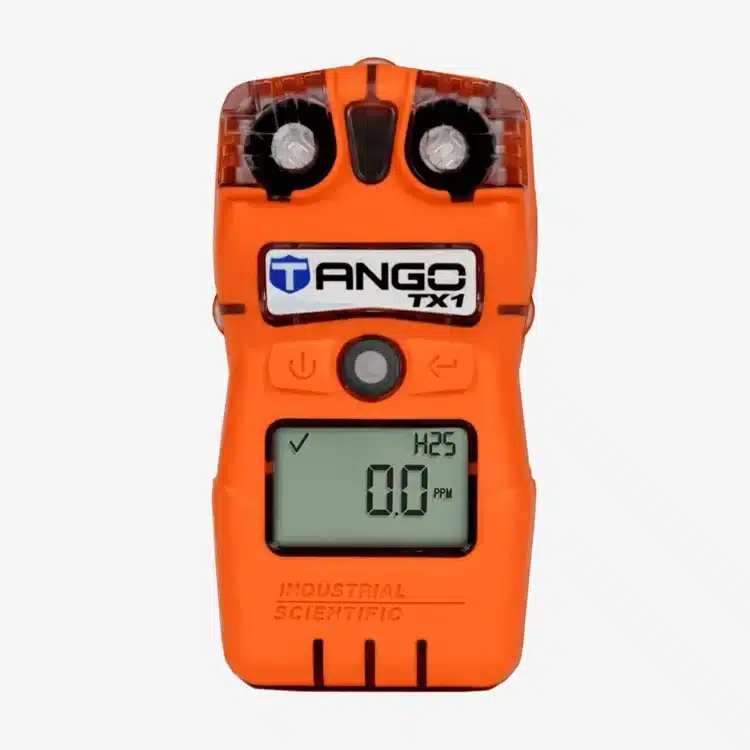

Tango TX1 Single-Gas Portable Gas Detector

With 3-year runtime & DualSense® Technology, Tango TX1 gas detectors increase worker safety, regardless of bump test frequency, while reducing overall costs.

  • Tango TX1 is the world’s first-ever single-gas detector to use two sensors to detect the same gas.
  • DualSense® Technology makes Tango users 85 times safer.
  • 3 years continuous battery runtime.

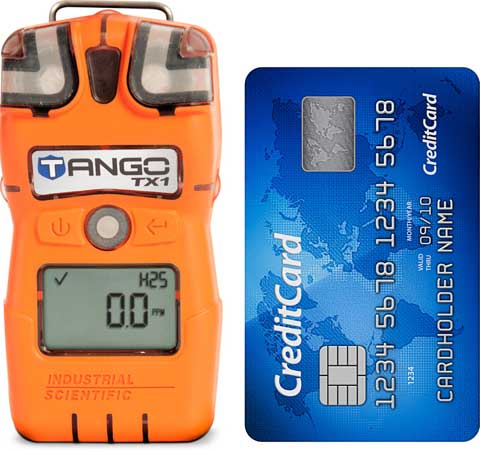

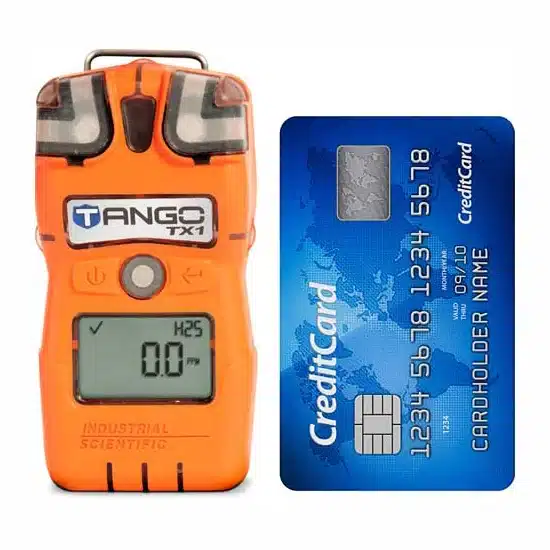

Tango TX1 gas detector size compared to a credit card

Significantly increases worker safety

DualSense™ Technology increases worker safety, regardless of bump test frequency. Your workers will be significantly safer with the Tango TX1 than any other single-gas detector on the market today. *

*Based on iNet® data including more than 2 million bump tests and 100,000 unique sensors.

Longer battery life

Operates continuously in an “always-on” mode for 3 years. After the battery can no longer support instrument life, it can be replaced for another 3 years of continuous operation.

Louder alarm

Tango TX1 alarms at 100dB at 10cm. This makes it twice as loud as Industrial Scientific’s GasBadge detectors and louder than any other single-gas detector on the market.

For high-noise environments, the alarm volume can be further increased by about 10dB with the optional AlarmAmp™.

DualSense® Technology

DualSense Technology significantly increases worker safety, regardless of bump test frequency.

The Tango TX1 portable gas detector uses patent-pending DualSense™ Technology. This technology was developed to address one of the biggest challenges facing users of single-gas detectors – bump testing instruments.

Bump testing ensures detectors are properly detecting gas and alarming. DualSense Technology includes two of the same type sensor for detection of a single gas. The two sensor readings are processed through a proprietary algorithm and displayed as a single reading to the user.

Tango TX1 portable gas detector in use





PDF Downloads

pdf-icon Tango TX1 – Product Manual Download PDF
pdf-icon Tango TX1 – Reference Guide Download PDF
pdf-icon Tango TX1 – Specification Sheet Download PDF
pdf-icon Tango TX1 – University Brochure Download PDF
pdf-icon Getting to know your Tango TX1 Download PDF



Tango TX1 Specifications

INSTRUMENT WARRANTY

  • 3-year warranty which does not include battery, sensors and filters.
  • CO and H2S sensors are warranted for 3 years from the initial purchase date.
  • All other sensors are warranted for 2 years from the initial purchase date.

DISPLAY

  • Segment liquid crystal display (LCD)

KEYPAD

  • Two buttons

CASE MATERIALS

  • Case top: Polycarbonate with a protective rubber overmould
  • Case bottom: Conductive polycarbonate

ALARMS

  • Three strobe-emitting visual alarm LEDs (two red, one blue);
  • 100 decibel (dB) audible alarm at a distance of 10cm;
  • Vibration alarm

DIMENSIONS

  • 99mm x 51mm x 35mm

WEIGHT

  • 126g

OPERATING TEMPERATURE RANGE

  • -40°C to +50°C

OPERATING HUMIDITY RANGE

  • 15%-95% non-condensing (continuous)

INGRESS PROTECTION

  • IP66; IP67

SENSORS

  • CO, H2S, NO2, SO2, CO/H2 low – electrochemical sensor technology

SENSOR MEASURING RANGES

  • Carbon Monoxide (CO): 1 to 1,000 ppm in 1 ppm increments
  • Hydrogen Sulfide (H2S): 0.0 to 200.0 ppm in 0.1 ppm increments
  • Nitrogen Dioxide (NO2): 0.0 to 150.0 ppm in 0.1 ppm increments
  • Sulfur Dioxide (SO2): 0.0 to 150.0 ppm in 0.1 ppm increments
  • Carbon Monoxide (CO/H2 low): 0.0 to 1,000.0 ppm in 1 ppm increments

BATTERY PACK

  • 3.6 V Primary lithium-thionyl chloride (Li-SOCl2), 1.5AH, 2/3AA, replaceable, non-rechargeable.

CERTIFICATIONS

  • -40°C TO +50°C
    • ATEX
      • Ex ia I Ma
      • Ex ia IIC T4 Ga;
      • Equipment Group and Category: I M1 and II 1G
    • IECEx
      • Ex ia I Ma
      • Ex ia IIC T4 Ga
    • UL (C-US)
      • Class I, Groups A, B, C, and D; Class II, Groups E, F, and G; T4; Exia
      • Class I, Zone 0, AEx ia IIC T4
  • -20°C TO +50°C
    • CSA: Ex ia IIC; Class I, Groups A B C D; T4
    • China Ex: Ex ia IIC T4 Ga
    • INMETRO: Ex ia IIC T4; Zone 0
  • PENDING
    • MSHA: Permissible Gas Monitor
    • KOSHA: Ex ia IIC T4 Ga
    • China MA: Safety Certificate of Approval for Mining Products

These specifications are based on performance averages and may vary by instrument.

*The Tango TX1 is warranted to be free from defects in material and workmanship under normal and proper use and service for 3 years from the initial purchase date.



Tango TX1 portable gas detector in use





Tango TX1 Ordering Info

Part Number Description
TX1-1 Tango TX1, CO
TX1-2 Tango TX1, H2S
TX1-4 Tango TX1, NO2
TX1-5 Tango TX1, SO2
TX1-G Tango TX1, CO/H2 low

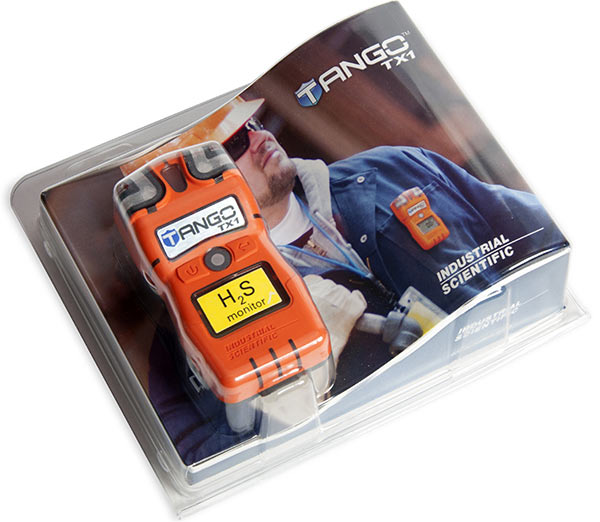

Tango TX1 portable gas detector packaging

Find out more about Tango TX1 at Industrial Scientific’s website here.
